TOW BAR WIRING 7-PIN + Bypass Relay Smart BOX
Availability:
50+ More Available
Dispatched within:
24 Hours
Description

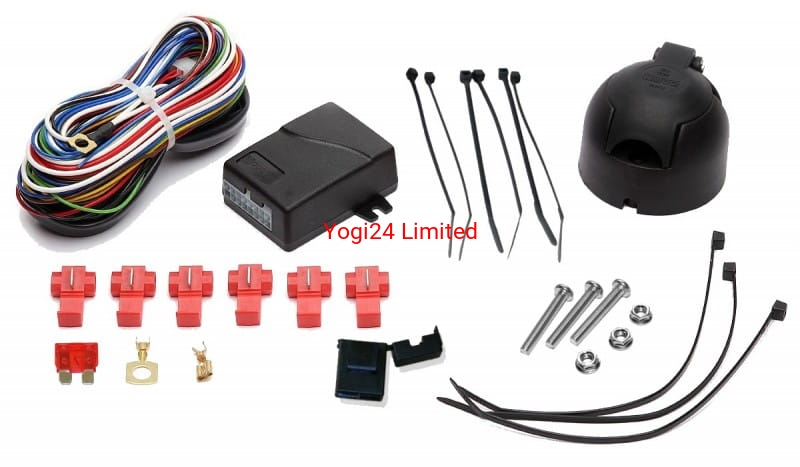

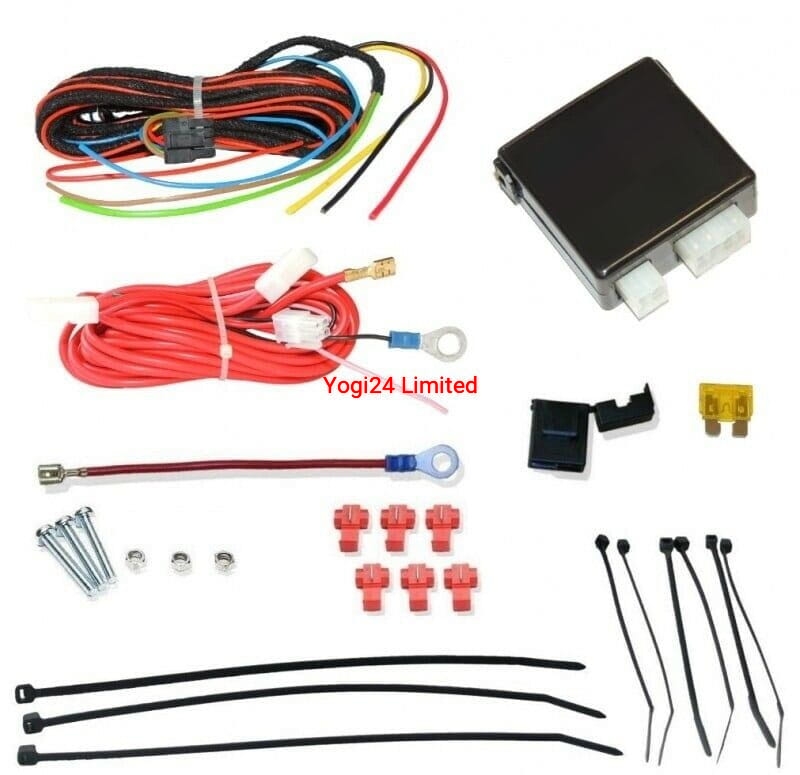

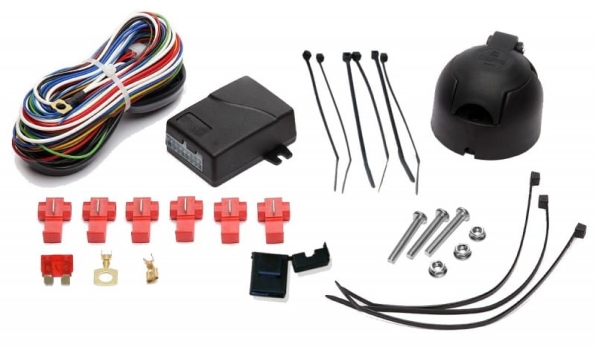

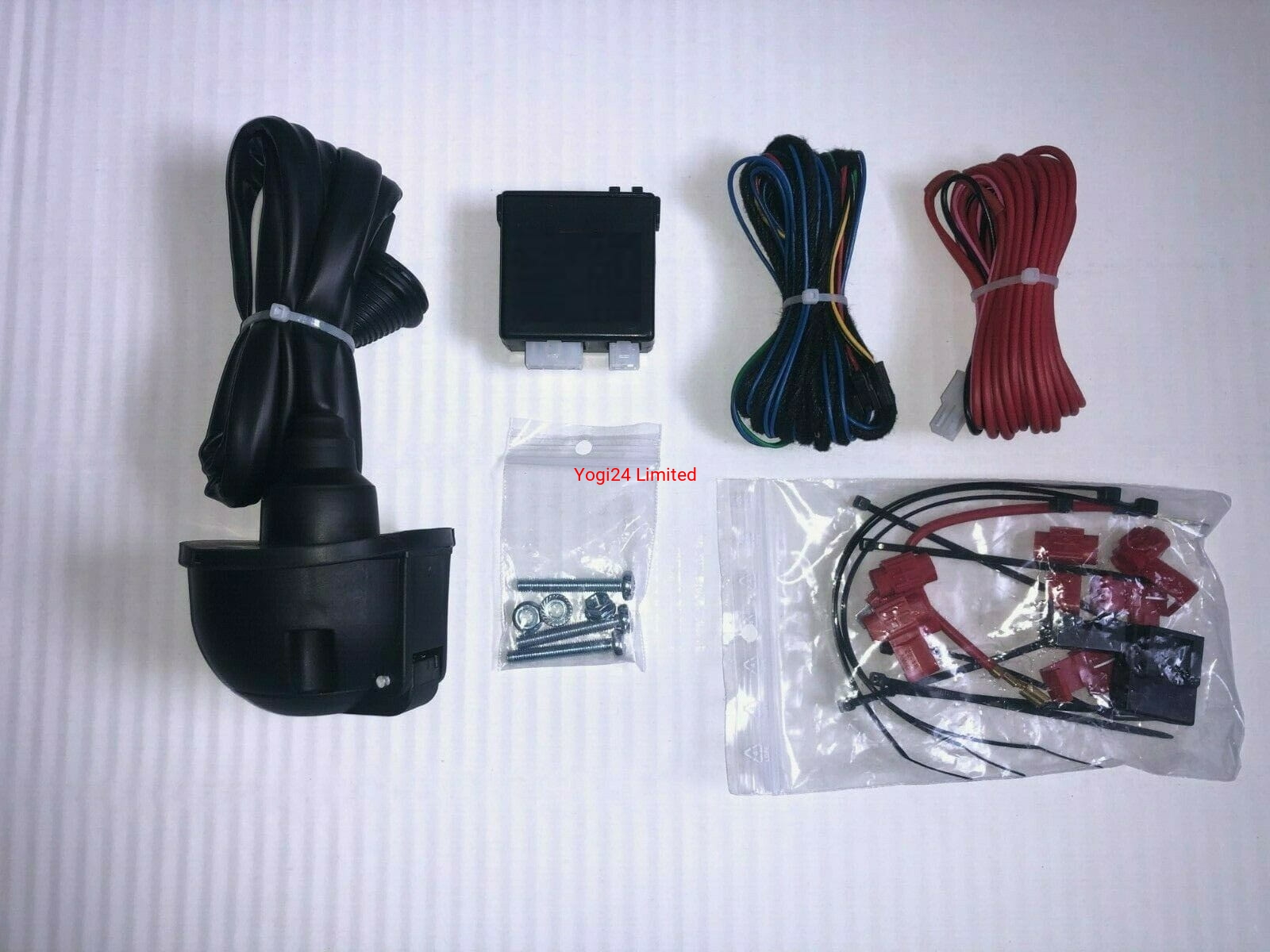

KIT CONTENTS
- Main control unit - Smart box
- Basic integrated cable harness (all-in-1-plug)

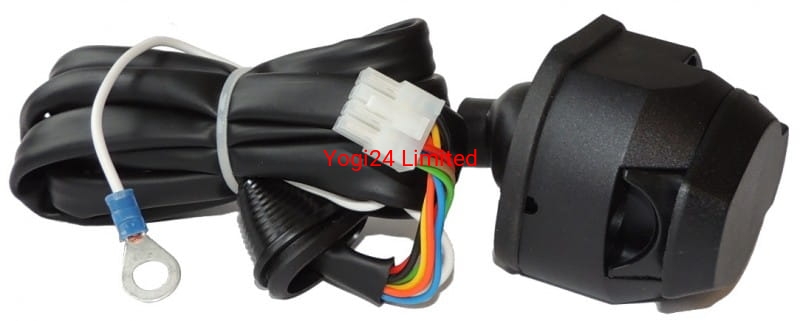

- Socket G7
- Mounting set
- Screw set
- Connections diagram
Module with standard functionality (WH2S) with 7-pin's socket (G7).
Kit contains all accessories for connection of module to the car's electric system - and socket G7.
Like whole series - this module have integrated all-in-one socket which makes an installation easier.
Module have standard functionality, this mean that above basics functions it make possible eg.:
- possibility of switch-off the control unit of parking sensors (PDC);
- sequence switching-off the fog light (54G) on car when it (54G) is still switch-on on trailer;
- signalling of damaged the directions lights on the trailer by buzzer's acoustic signal.
To the module can be connected (optionally) LED - tri-colour LED indicator which inform about:
- connecting of the trailer;
- damaging the directions lights on the trailer;
- switching-on fog light on the trailer.
NOTE: Please remember, that G7 not include circuit for REV light. For example in Poland it can be used only with "lightweight trailer" (gross trailer mass up to 750kg).
